Slide Rail / motorhome 360 degree swivel Locking Car seat cushion with slider

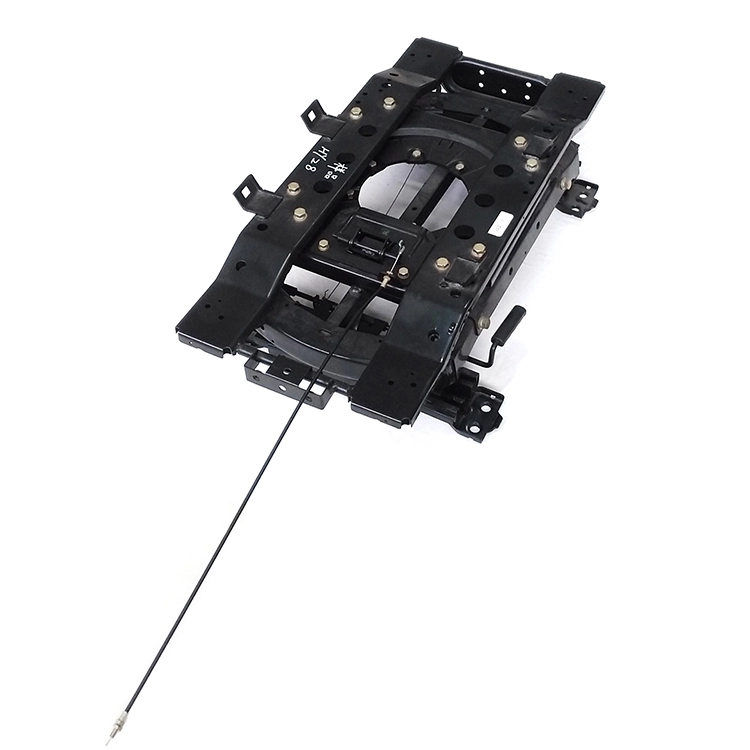

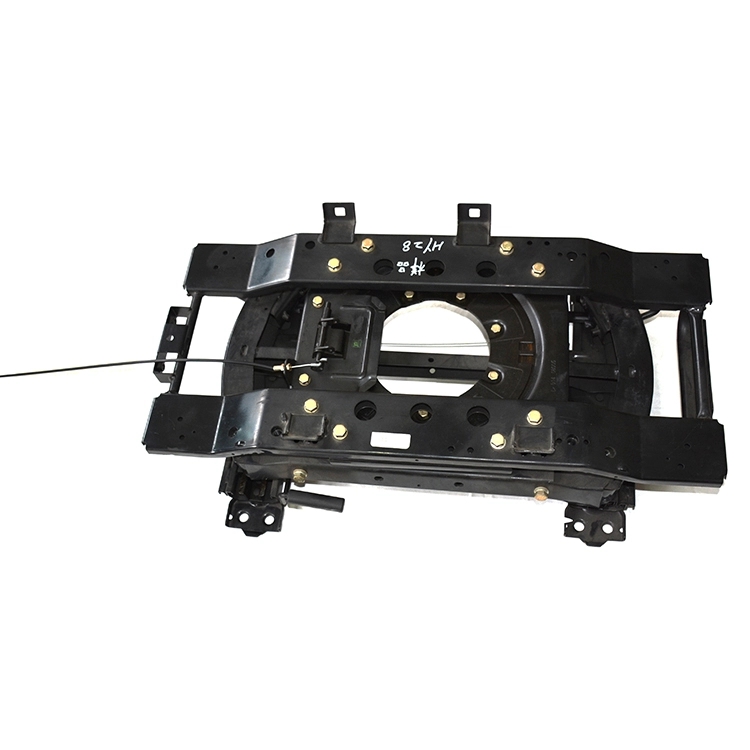

motorhome 360 degree swivel Locking Car seat cushion with slider

Upper and lower mounting dimensions: 375mm*204mm/296mm

: 382 mm * 493.5 mm

Rotation range is 0°~180°

Rotation positioning gear number 3

Rotation positioning Angle 90°

Slide rail length slide shell 359.5mm slide core 325mm

Forward travel: 90mm

The backward stroke is 60mm

15 mm pitch

Locking mode double locking

Supporting model JAC Ruifeng nine seat commercial vehicle midrow
