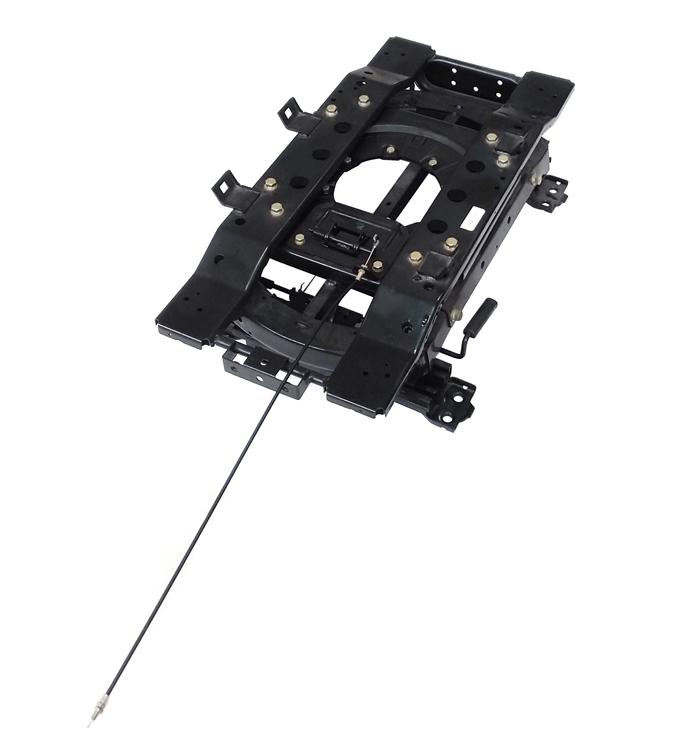

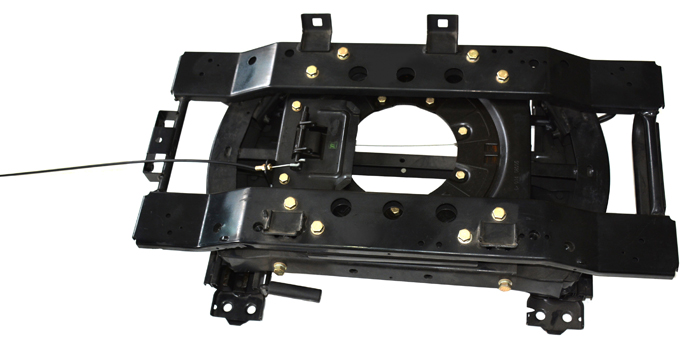

Revolving Structure / HY28

HY28






Product Category Rotating Mechanism
Installation size UP:375mm*204mm/296mm
DOWN:382mm*493.5mm
Rotation Range 0°~180°
Adjust gears 3
Adjust angle range 90°
Track length Outer Rail:359.5mm
Inner Rail:325mm
Travel Length Forward 90mm
Travel Length Backward 60mm
Tooth Pitch 15mm
Latch Mode Double Lock
Vehicle Modle JAC Refine Passenger Seat
